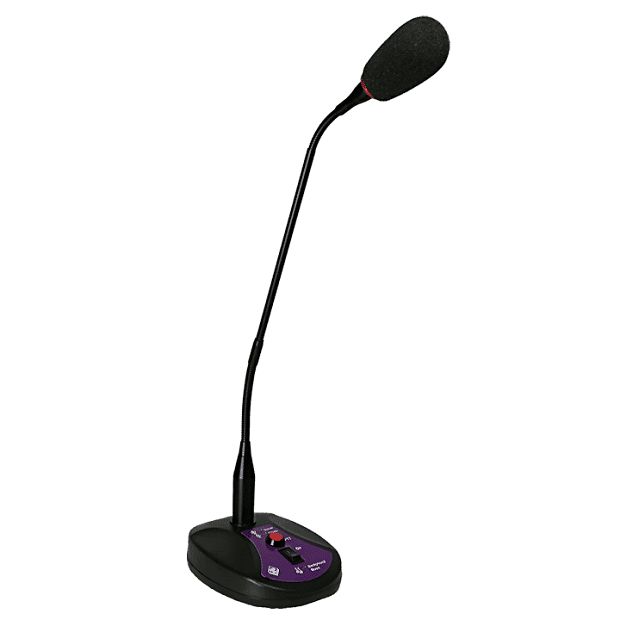

The AD696 / BM amplified microphone base connects to an AD615 Tema Encoder to send announcements on the LAN in Multicast channels to the network amplifiers or to the AD600 IP-SIP speakers of the SipComStage line.
The table base is equipped with a “Talk” button to enable the microphone and a two-position switch to enable or disable the possible background music source connected to the AD615 Encoder.
The base allows you to send warning sounds (Dingdong or Chime) up to 7 different types pre-configured and selectable by a Dip-Switch positioned under the base. Upon request, the sounds (or short messages) can be customized according to customer specifications, maximum memory capacity 16sec.
Three bright LEDs on the base indicate the status of the activity.
“Always on” electronic function
|Microphone capsule||electret capacitor|
|Output impedance||150 Ohm|
|Sensitivity||-40dB (0dB 1V / Pa @ 1Khz)|
|commands||1 “Talk” button, 1 switch|
|Notifications||3 LEDs (On Air, Music, Din-don)|
|Settings||microphone volume and Din-don|
|No din-don sounds||7 selectable with dip-switches|
|Sound memory||E2prom 2Mb, 16sec of audio|
|Body||made of impact-resistant metal alloy|
|Windproof hood||black polyurethane foam|
|Arm||flexible gooseneck in 2 removable points, with XLR connector|
|Connector / Cable||RJ45 8-way owner, C5 1,5mt|
|Supply||5V (From Encoder AD615)|
|Operating temperature||-10 ° + 55 °|
|Storage temperature||-20 ° + 65 °|
|Humidity||0 – 95% non condensing|
|dimensions||113 x 140 x H35 mm (without arm)|
|Weight||0.52 kg including cable|
