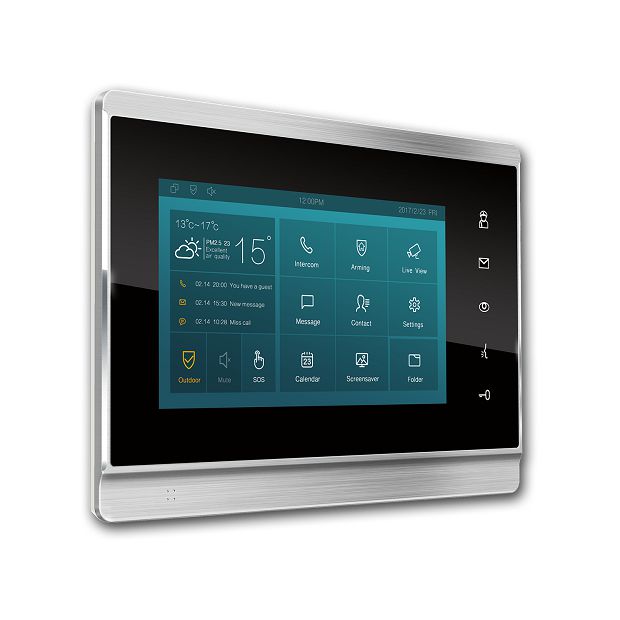

Akuvox IT82R / IT82W – SIP enabled Android touch screen monitor with Wi-Fi option

7inch touch screen monitor with Android OS

  • SIP v2.0 compliant works with all SIP based IP PBX systems
  • Works with Akuvox & 2N Door intercoms through SIP Server or P2P
  • 7  inch touch screen TFT LCD, 1024 x 600 HD Resolution
  • Thin profile with sleek wall mount bracket
  • Supports Video Preview and Visitor Snapshot Capture
  • 2 x 10/100Mbps Ethernet ports,  with one PoE 802.3af
  • Optional  Wi-Fi  interface on IT82W
  • Android Operating System allows 3rd part apps to be loaded
  • Integrated Mic and Speakers.
  • Optimized for Video Intercom applications with Door/ Gate Open one touch button, Web relay activation.
  • Supports 3rd party  Security Camera Streaming and Home Automation Apps

Akuvox IT82 Touch Screen Monitor is available in 2 versions please select below.



The Akuvox IT82R / IT82W indoor touch screen monitor is the perfect mate for SIP door phones it can receive video calls with 2 way audio from intercoms to enhance security of homes and offices. The IT82  also supports PoE and optional WI-Fi for easy and cost effective installation.

Since it is based on Android OS the Akuvox IT82R / IT82W offers a rich experience to users by integrating 3rd party apps of Building intercom, Camera streaming, Music streaming, Home automation management, security alarm etc.making it a powerful multi functional device for Smart Homes.

Akuvox IT82R / IT82W Product Features

  • Receive calls from door phone, and unlock the door remotely during talk;
  • Support connecting with security alarm monitor;
  • Support monitoring both door phones in the doorway and permitted network cameras in residential community;
  • Android OS for any 3rd party software or customization;
  • Support displaying photos on the screensaver;
  • Integrate the functions of building intercom, message announcement, home management, security alarm,information services and more.

Akuvox IT82 Datasheet


  • At a Glance

    Ultra-clear, stylish appearance;
    7-inch capacitive touch screen with energy saving mode;
    Built-in 1MP CMOS camera;
    Two-way audio communication with other units in the network;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Powered by PoE or external source
    Support US or European electrical wall box mounting
  • Physical & Power

    Front panel: Aluminum
    RAM / ROM: 2GB / 8GB
    Display: 7 Inch TFT LCD
    Screen: 7 Inch capacitive touch screen
    Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
    Camera: 1MP camera, CMOS
    Buttons: 5 capacitive buttons, programmable
    Memory slot: 1 SD slot
    RS485 port: Support
    Relay out: 1
    I/O: 8
    Microphone: -38dB
    Speaker: 4Ω / 2W
    Ethernet ports: 2xRJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Installation: Wall-mounted & Desktop
    Dimension: 232x160x27.8mm
    Working Humidity: 10~90%
    Working Temperature: -10°C ~ +45°C
    Storage Temperature: -20°C ~ +70°C
  • Touch Screen Display

    Display Mode: Active matrix TFT, Transmissive
    LCD Size: 7inch (Diagonal)
    Aspect Ratio: 16:9
    Resolution: 1024×600
    Contrast ratio: 800:1
    Luminance: 270 cd/m2
    Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
    Touch Screen: Projected capacitive
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
    Automatic Gain Control
  • Video

    Streaming formats: H.263 & H.264
  • Networking

  • Deployment & Maintenance

    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Apartment complexes
    Home automation systems
    Modern interiors

Additional information

Weight 0.5 kg



Akuvox IT82 Datasheet
