2N IP VERSO MODULES

This section is for customers who have already purchased an 2N IP Verso basic intercom  and want to add extra module / modules.

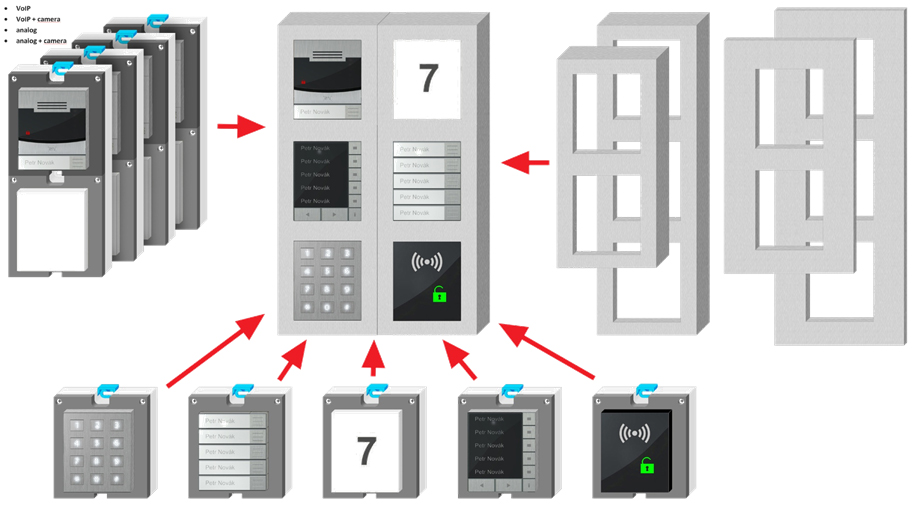

The modular design of the 2N® IP Verso intercom allows you to add extra modules to  address specific needs. The IP Verso can support upto 30 modules. Bluetooth, RFID Card reader, Touch Display, Keypad, Infopanel, Nameplate etc. to name a few. Please browse under description below for more information on the modules.

Please select the Modules from the menu below, to select mounting frames please click on  2N IP Verso installation-frames

.



Clear
Compare
Brand:

Description

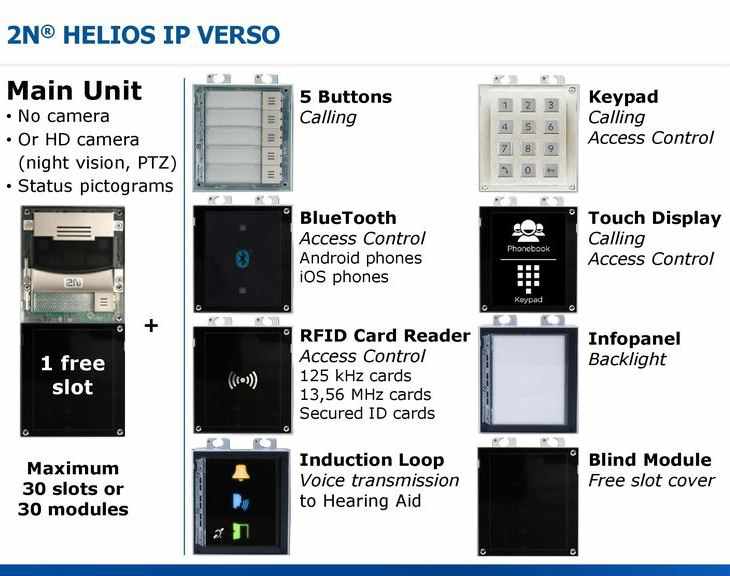

The modular design of the 2N IP Verso intercom allows you to add extra modules to address specific needs. The IP Verso can support upto 30 modules. Bluetooth, RFID Card reader, Touch Display, Keypad, Infopanel, Nameplate etc. to name a few. Please click on links below for more information on the modules.

2N Helios IP Verso range

2N 9155030 Infopanel – The Infopanel module helps you place such information into the intercom installation as house number, opening hours and similar data. The Infopanel backlight is software controlled. Download Datasheet

2N 9155031 Keypad Module – The numeric keypad module helps you dial users via their phonebook positions or phone numbers, control the lock and use other code-accessible functions. The keypad digits and symbols are backlit. Nickel. Download Datasheet

2N 9155031B Keypad Module – The numeric keypad module helps you dial users via their phonebook positions or phone numbers, control the lock and use other code-accessible functions. The keypad digits and symbols are backlit. Black. Download Datasheet

2N 9155032 RFID Card Reader, 125 kHz – card reader module provides you with access control via contactless cards or keyfobs. The module supports the 125 kHz EM-41xx or HID Proximity cards. Download Datasheet

2N 9155033 RFID Card Reader, 13 MHz – card reader module provides you with access control via contactless cards or keyfobs. The module supports the following 13.56 MHz cards or  other carriers:

  • ISO14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant
  • ISO1443B Calypso, CEPAS, Moneo, SRI512, SRT512, SRI4K,SRIX4K, PicoPass, HID iCLASS,
  • ISO18092, Sony FeliCa

2N 9155034 I/O Module – The module provides logical inputs and outputs for sensor integration or door control. The module is installed under another module, i.e. needs no separate position. Download Datasheet

2N 9155035 Buttons – A module with 5 mechanical quick dial buttons. The buttons are backlit and can include nametags. Download Datasheet

2N 9155036 Touch Display Module – This upmarket, four-inch LCD display captivates with its intuitive controls and search function. In addition, it is resistant to water and mechanical damage to the utmost, and is very easy to read, not only in total darkness, but even in direct sunlight. Download Datasheet

  • Tree-structured phone book with capacity for up to 10,000 contacts
  • Touch keypad for access code entry
  • During idle time can show a slideshow, e.g. the company logo
  • Scramble keypad to prevent onlookers from detecting the access code

2N 9155037 Wiegand Module – The module helps you interconnect your system with other systems via the Wiegand interface. The module is installed under another module, i.e. needs no separate position. Download Datasheet

2N 9155038 Tamper Switch – The module secures your system against tampering by detecting intercom opening or top frame removing. The module is installed on a special place and needs no separate position. Download Datasheet

2N 9155039 Blank Module – Blank Filler Module for 2N Verso Modular IP Door Intercom System.

2N 9155040 RFID Card Reader, 13 MHz – NFC License – card reader module provides you with access control via contactless cards or keyfobs. The module supports the following 13.56 MHz cards or other carriers: Download Datasheet

  • ISO14443A Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant
  • ISO1443B Calypso, CEPAS, Moneo, SRI512, SRT512, SRI4K,SRIX4K, PicoPass, HID iCLASS,
  • ISO18092, Sony FeliCa
  • NFC License-ready

2N 9155041 Induction Loop Module – This Module features an integrated Audio Frequency Induction Loops (AFILS) facility to aid communication with users who have a hearing impairment and wear a hearing aid. Download Datasheet

2N9155046 Bluetooth Module – Provides a safe and convenient way to unlock doors using a Bluetooth-enabled smart phone or tablet with the 2N Mobile Key application. Doors can be opened in two different ways. In Tap in App mode, the door opens after tapping the button in the app. Touch mode allows the user to keep their mobile phone in their pocket and enter by simply touching the reader. Download Datasheet

2N 9155045 Biometric Fingerprint Reader Module – Provides fast, secure and reliable access control and allows for easy interface with other systems, achieving greater site security. Download Datasheet

2N 9155047  Touch Keypad module –  A sensitive capacitive touchscreen keypad module for the 2N IP Verso range. Simply enter a common or unique PIN code to open a door and gain access to the building. Download Datasheet

2N 9155081 Touch Keypad & RFID Reader, 125kHz ~ 13.56MHz – NFC – The two-in-one module is used with the IP Verso and LTE Verso Modular Door Intercom Range and is equipped with a highly sensitive, capacitive touch digital keypad which enables access to a building via the entered PIN number or the RFID card reader for dual optional building access. Download Datasheet

2N 9155082 Bluetooth & RFID Reader, 125kHz ~ 13.56MHz – NFC – The two-in-one Contactless Bluetooth & RFID Reader Access Module for use as part of the Helios IP Verso Intercom Modular Door Entry System. This module can be used with the IP Verso and LTE Verso product range. Download Datasheet

2N 9155083 Touch Keypad & RFID Reader, 125kH z~ secured 13.56MHz – NFC – The two-in-one module is used with the IP Verso and LTE Verso Modular Door Intercom Range and is equipped with a highly sensitive, capacitive touch digital keypad which enables access to a building via the entered PIN number or the RFID card reader with optional secured card for dual-access to a building/room. Download Datasheet

2N 9155084 Bluetooth & RFID Reader, 125kH z~ secured 13.56MHz – NFC – A two-in-one Contactless Bluetooth & RFID Reader Access Module for use as part of the Helios IP Verso Intercom Modular Door Entry System. This module can be used with the IP Verso and LTE Verso product range. Download Datasheet

Additional information

Weight 0.75 kg
