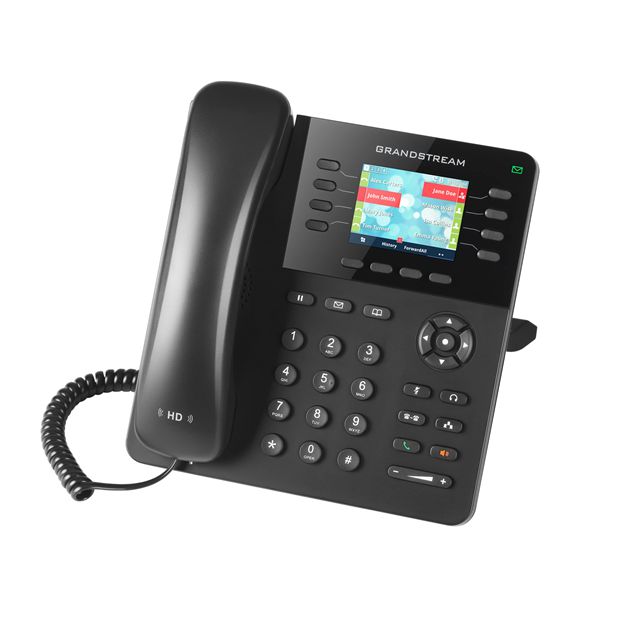

Grandstream – GXP2135 High End IP Phone

A high-profile desktop phone built for the busy user. The GXP2135 is a sleek High-End IP phone that will bring higher levels of communication productivity to a network. Its modern design, high call capacity and rich functionality makes it the ideal choice for the call-intensive worker.

  • 8 lines, 4 SIP accounts, 4 XML programmable context-sensitive soft keys
  • Dual switched, auto-sensing Gigabit ports, built-in PoE
  • 32 digitally programmable and customizable BLF/speed-dial keys
  • Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
  • HD audio on the handset and speakerphone; full duplex speakerphone
  • Supports EHS compatible Plantronics headsets
  • 4-way audio conferencing for easy conference calls
Brand:

Description

Grandstream GXP2135 is the ideal selection for busy users who value call control, productivity and usability, and manage medium to heavy call volumes. Equipped with 8 lines and 4 SIP accounts, a 2.8 inch color LCD display, and 32 digital speed dial/BLF keys, the GXP2135 enables quick and powerful usability.

As all Grandstream IP phones do, the GXP2135 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2135 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Features:

  • 8 lines, 4 SIP accounts, 4 XML programmable context-sensitive soft keys
  • Dual switched, auto-sensing Gigabit ports, built-in PoE
  • 32 digitally programmable and customizable BLF/speed-dial keys
  • Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
  • HD audio on the handset and speakerphone; full duplex speakerphone
  • Supports EHS compatible Plantronics headsets
  • 4-way audio conferencing for easy conference calls

Specifications

Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP/RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, FTP/FTPS, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Network Interfaces Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display 2.8 inch (320×240) TFT color LCD
Bluetooth Yes, Bluetooth V2.1
Feature Keys 8 line keys with up to 4 SIP accounts or 32 provisionable BLF/fast-dial keys, 4 programmable contexts sensitive Softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME+, VOLUME-
Voice Codec Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets)
Telephony Features Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, Hot Desking, personalized music ringtones and music on hold, server redundancy and fail-over
HD audio Yes, both on handset and full-duplex handsfree speakerphone
Base Stand / Wall Mountable Yes, allow 2 angle positions
QoS Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language

LCD Language: العربية (Arabic) Català (Catalan) Czech Deutsch (German) English Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Latviešu valoda (Latvian) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Slovenščina (Slovenian) Svenska (Swedish) Türkçe (Turkish) Ukrainian 正體中文 (Traditional Chinese) 简体中文 (Simplified Chinese)
WebUI Language: English 简体中文 (Simplified Chinese) 繁體中文 (Traditional Chinese) العربية (Arabic) Czech Deutsch (German) Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Slovenščina (Slovenian) Türkçe (Turkish)



Upgrade/Provisioning Firmware upgrade via TFTP/FTP/FTPS/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power & Green Energy Efficiency Universal power adapter included: Input:100-240VAC; Output: +12VDC, 0.5A;

Integrated Power-over-Ethernet (802.3af) Max power consumption 3W

Physical Dimension : 228mm (W) x 206mm (L) x 46.5mm (H)

Unit weight: 0.98kg

Package weight: 1.55kg

Temperature and Humidity 0 ~ 40ºC (32 ~ 104ºF), 10 ~ 90% (non-condensing)
Package Content GXP2135 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
Compliance FCC Part 15 (CFR 47) Class B ; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479, AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS ; UL 60950 (power adapter)

Downloads

GXP2135 – Quick Installation Guide

GXP21xx Series – Administration Guide
