Grandstream-GRP2601P

Grandstream-DP730Grandstream - GRP2603

  • 2 SIP account, 2 lines
  • GDMS online device management and provisioning
  • 5-way audio conferencing for easy conference calls
  • Equipped with noise shield technology to minimize background noise
  • Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
  • The GRP2601P includes built-in PoE to power the device and give it a network connection
  • Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
Add to wishlist
Compare
Category:
Brand:

Description

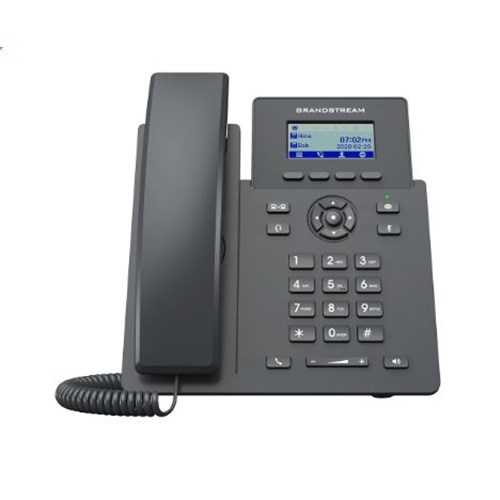

Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.

Features

  • 2 SIP account, 2 lines
  • GDMS online device management and provisioning
  • 5-way audio conferencing for easy conference calls
  • Equipped with noise shield technology to minimize background noise
  • Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
  • The GRP2601P includes built-in PoE to power the device and give it a network connection
  • Enterprise-level protection including secure boot, dual firmware images and encrypted data storage

GRP2601 Series – User Guide

GRP2601/P – Quick Installation Guide

Specifications

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, SNMP, 802.1x, TLS, SRTP, IPV6

Network Interfaces

Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only)

Graphic Display

132 x 48 (2.21’’) LCD display

Feature Keys

4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE (with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Voice Codec

RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets)

Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets)

Telephony Features

Hold, transfer, forward, 3-way conference, call park, call pickup, downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over

Base Stand

Yes, 1 angle positions available

Wall Mountable

Yes, (*wall mount sold separately)

QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot.

Multi-language

LCD Language: English 简体中文 (Simplified Chinese) العربية (Arabic) Català (Catalan) Čeština (Czech) Deutsch (German) Ελληνικά (Greek) Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Latviešu valoda (Latvian) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Svenska (Swedish) Slovenščina (Slovenian) Slovenčina (Slovak) Türkçe (Turkish) Українська (Ukrainian) 正體中文 (Traditional Chinese)
WebUI Language: English 简体中文 (Simplified Chinese) العربية (Arabic) Čeština (Czech) Deutsch (German) Español (Spanish) Français (French) עברית (Hebrew) Hrvatski (Croatian) Magyar (Hungarian) Italiano (Italian) 日本語 (Japanese) 한국어 (Korean) Nederlands (Dutch) Polski (Polish) Português (Portuguese) Русский (Russian) Slovenščina (Slovenian) Türkçe (Turkish) 繁體中文 (Traditional Chinese)

Upgrade/Provisioning

Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;



PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only)

Physical

Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset)

Unit weight:650g; Package weight:810g (860g for GRP2601)

Temperature and Humidity

Operation: 0°C to 40°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

Package Content

GRP2601/2601P phone, handset with cord, base stand, universal power supply (GRP2601 only), network cable, Quick Installation Guide

Compliance

FCC: Part 15 Class B; FCC Part 68 HAC;

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1;

RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;

IC: ICES-003; CS-03;

Downloads

GRP2601 Series – User Guide

GRP2601/P – Quick Installation Guide
