Description

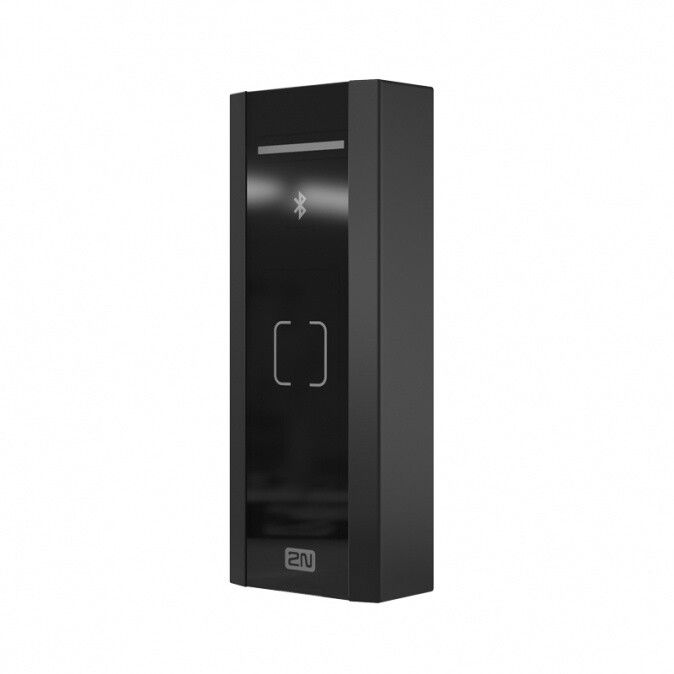

AX916115 Axis Access Unit M with Bluetooth, RFID, NFC is a two-in-one Contactless RFID and Bluetooth (BLE) Access Control Unitwhich allows for access to electronically secured doors using a Bluetooth-enabled smart phone or RFID card / keyfob as the user ID device. Axis Access Unit M 916115 Bluetooth RFID NFC Ready can read most cards at a frequency of 125Khz / 13.56 MHz. It is suitable for companies which prefer traditional RFID technology. The reader supports NFC technology, so employees who don’t want to wear a card can use their mobile phone to gain access. Administer a unit remotely via the secure web interface or in the Axis Access Commander software..
This mullion-style access control reader is designed with a narrow profile to allow for convenient mounting in limited-space positions such as door frames.
AX916115 Axis Access Unit M with Bluetooth, RFID, NFC provides a modern approach alongside a safe and convenient way to unlock doors. Using a Bluetooth- or NFC-enabled smart phone or an RFID card / keyfob (125Khz, 13.56Mhz), this compact unit provides residents or staff with a secure and convenient contactless door entry solution. Users have the option of entry and organisations/residents can obtain temporary access to the building.
-
Convenience of mobile credentials
-
Mullion-style narrow profile for door frame location
-
Different modes of users authentication
-
Web interface administration
-
Straight forward pairing process
-
Time & attendance terminal
-
Remote configuration and management
-
Mobile credentials for FREE
-
Dual format user authentication – RFID & Bluetooth (BLE)
https://youtu.be/-JeC-NtAmZ4
Technical Specifications
| Interfaces | |
| Power supply: | PoE and/or 12 V/1 A DC |
| PoE: | 802.3af (Class 0–12.95 W) |
| LAN: | 10/100BASE-TX with Auto-MDIX, RJ-45 female (pigtail) |
| Recommended cabling: | Cat-5e or better |
| Active switch output: | 8 to 12 V DC/max 600 mA |
| Passive switch: | NO/NC contacts, up to 30 V/1 A AC/DC |
| Inputs: | 2 inputs – in passive/active mode (-30 V to +30 V DC) |
| OFF = open or Uin> 1.5 V | |
| ON = short-circuit or Uin< 1.5 V | |
| Tamper switch: | native part of the 2N Access Unit M |
| Audio: | buzzer, 1 W/8ohm |
| Supported protocols: | DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog |
| Bluetooth | |
| Version: | compatible with Bluetooth 5.0 LE |
| Range: | (short – typically up to 3m*, long – typically up to 10m*) |
| *distances should serve only as an approximate guide and may vary depending on the phone model and installation environment | |
| Security | RSA-1024 and AES-128 encryption |
| RX sensitivity | up to -93 dBm |
| Mode | touch, tap in app, card |
| Mobile Application Support | |
| Android 6.0 and higher, iOS 12.0 and higher | |
| RFID Card Reader | |
| Supported frequencies | 125 kHz and 13.56 MHz variant |
| Supported card types | |
| 125 kHz | EM4xxx |
| 13.56 MHz | ISO14443A, FeliCa, ST SR(IX), NFC (2N® Mobile Key) |
| reads UID (CSN) and secured MIFARE® DESFire® EV2/EV3 cards using 2N® PICard technology | |
| Mechanical Properties | |
| Cover: | tempered glass with durable plastic |
| Operating temperature: | -40°C to +60°C |
| Storage temperature: | -40°C to +70°C |
| Operating relative humidity: | 10%-95% (non-condensing) |
| Dimensions (surface mounted): | 50 (W) x 133 (H) x 27 (D) mm |
| Weight: | max 0.5 kg |
| Cover rating: | IP55 and IK07 |
