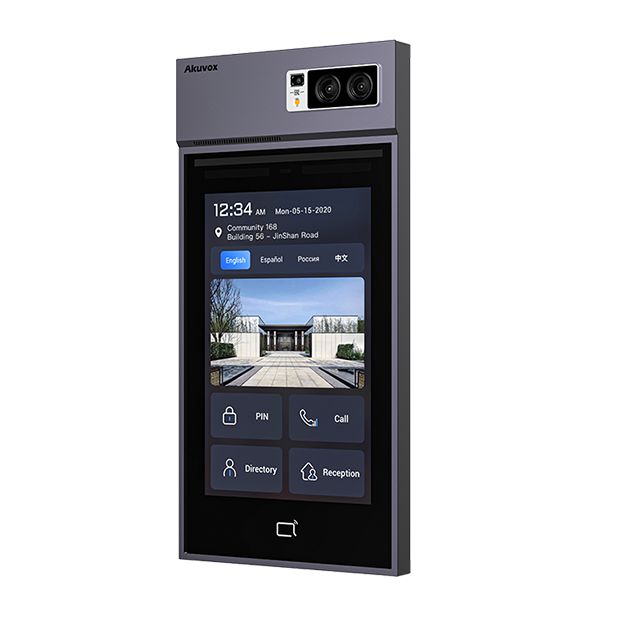

Akuvox S539 Luxury Intercom with Multi-way Access Control

Description

Industry-first Metaverse Android Door Phone

Akuvox S539 video door phone, featuring a terraced surface, a multi-functional camera module, and over 15 access control methods, is innovatively built in with an avatar. More convenient, more secure, and more interactive. The Metaverse-Intercom era is coming with S539.

Akuvox S539 is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for tenants and visitors access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.

• Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;
• Face verification accuracy >99% ; face comparison speed <0.2s per person; false recognition rate<0.1%;
• Intuitive interface with color touch display for superior tenants and visitors usability;
• 10” fully-color touch display provides ultra-wide viewing angles;
• Presents information and user navigation options unique to your business;
• Supports SIP to provide reliable voice & video communication;
• Complies with ONVIF standard for easy integration with any network surveillance system;

S539 Specifications

• Physical & Power

  Front Panel: Aluminum

  Display: 10 Inch IPS LCD

  Main Camera: 5M pixels, with starlight

  Light Sensor: Support

  Motion Sensor: Support

  ToF Sensor: Support

  Wiegand Port: Support

  RS485 Port: Support

  Line Out: Support

  RF Card Reader: 13.56MHz & 125kHz

  Relays Out: 3

  Inputs: 3

  Microphone: 2

  Speaker: 2

  Reset Button: 1

  BLE: Support

  Ethernet port: 1xRJ45, 10/100Mbps adaptive

  IEEE 802.3at PoE+

  Power: DC12V / 3A or DC24V / 1.5A

  IP & IK Level: IP66 & IK08

  Installation: Flush-mounted & Wall-mounted

  Flush-mounted DIM: 363.5×179.8x64mm

  Wall-mounted DIM: 367.5x183x35.5mm

  Working Humidity: 10~90%

  Working Temperature: -30°C ~ +55°C

  Storage Temperature: -30°C ~ +70°C

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ

  Wideband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

• Video

  Sensor: 1/2.7”, CMOS for main camera

  Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

  Video codec: H.264

  Video technology: HDR

  Video resolution: up to 1920×1080

  Max. image transfer rate: 1080p – 30fps

  Viewing angle: 120°(H) / 72°(V)

  Compatible to 3rd-Party-Video components,

  e.g. NVRs

• Networking & Protocol

  Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Door Entry Feature

  Android OS for any 3rd party software or customization

  Relays controlled individually by DTMF tones

  Multi-way Unlock: Face, Card, PIN, BLE & QR code

  Camera permanently operational

  Auto-night mode with LED illumination

  White balance: auto

  Minimum illumination: 0.1LUX

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Entry log export

  Access table export / import

  Firmware upgrade

  System logs (include door access logs)

• Application Scenario

  Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings

Akuvox S539 Datasheet
