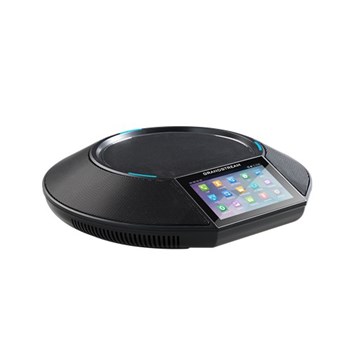

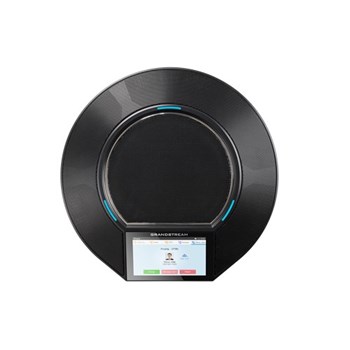

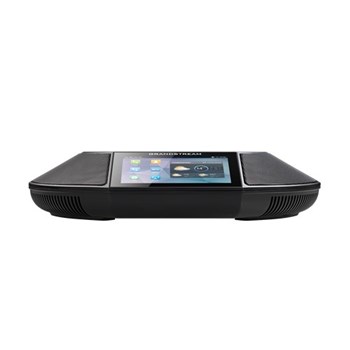

GAC2500 ANDROID ENTERPRISE CONFERENCE PHONE

Grandstream -GDS3712Grandstream - GMD1208 WIRELESS CORDLESS MICROPHONE

An ideal conference solution that delivers a modern design paired with HD audio and a suite of productivity-focused features. The Android-based GAC2500 offers access to features and functionality not traditionally found in conference phones.

Add to wishlist
Compare
Category:
Brand:

Description

The GAC2500 is designed to transform your business conferencing experience through its immersive audio conferencing environment and suite of advanced features. Redefining audio conferencing, the GAC’s 6 lines, WiFi and Bluetooth compatibility, HD Audio, Gigabit network ports and Android operating system with touch screen enhances the way users will meet and work together. Easily connect any time, using the GAC’s 7-way conference bridge. the GAC supports a productive experience with the GAC2500’s call scheduler, AndroidTM operating system and Google Play Store access.

Features

  • 6 lines, 6 SIP accounts, 7-way voice conferencing
  • Runs Android 4.4 and offers full access to the Google Play Store and all Android apps, such as Skype, Google Hangouts and more
  • Bluetooth to support syncing of headsets and mobile devices
  • Built-in 7-way conference bridge
  • 4.3″ (800×480) capacitive touch screen for easy use
  • Auto-sensing Gigabit port, built-in PoE support
  • Built-in WiFi support offers mobility and network flexibility
  • Full HD audio support to maximize voice quality
  • Daisy-chain support to combine two GAC2500 together
  • TLS and SRTP security encryption

GAC2500 Datasheet



Downloads

GAC2500 Datasheet

Specifications

GAC2500 Technical Specifications

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLSv1.1, TLSv1.2, SRTP, IPv6, OpenVPN (pending)

Voice Codec

Support for G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), G.729A/B, VAD, CNG, AEC, PLC, AJB, AGC

Platform Bridging

Bridge SIP calls with any Android™ VoIP apps such as Skype™, Skype for Business (Lync), Google Hangouts™ and more

Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy/conditional), call park/pickup, 7-way audio conference, auto answer, downloadable XML phone book (up to 2000 entries), LDAP, call waiting, call history (up to 2000 entries), flexible dial plan, personalized music ringtones, server redundancy & fail-over

Sample Applications

Skype™, Google Hangouts™, Skype for Business (Lync), Web browser, Facebook™, Twitter™, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development

Application Deployment

Allows Android 4.4 compliant applications to be deployed in the device with provisioning control

QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLSv1.1, TLSv1.2, 128/256-bit SRTP/TLS, HTTPS, 802.1x media access control

Multi-Language

English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file

Network Interface

1x auto-sensing Gigabit Ethernet port, integrated 2.4GHZ auto-band Wi-Fi (802.11a/b/g/n) and 4.0 Bluetooth.

HD Audio

3x microphones (12 ft. pickup range), 1x speaker (220-18,000 Hz, 15 ft. coverage range up to 86dB)

Auxiliary Ports

3.5mm audio interface, Micro-USB interface, RJ48 interface, reset pin

Graphic Display

4.3″ (800*480) capacitive touch screen LCD

Power & Green Energy Efficiency

Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: 12VDC, 2A (24W)

Temperature and Humidity

Operating: 32 – 104oF / 0 – 40oC

Storage: 14 – 140oF / -10 – 60oC

Humidity: 10% to 90% Non-condensing

Compliance

FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter)

CE：EN55022 Class B，EN55024，EN61000-3-2，EN61000-3-3，EN60950-1，EN62479，RoHS

RCM：AS/ACIF S004；AS/NZS CISPR22/24；AS/NZS 60950；AS/NZS 4268
