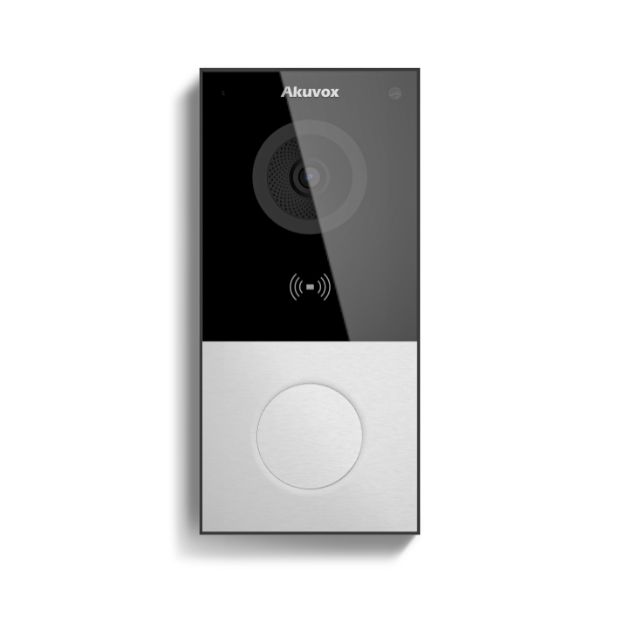

Akuvox E12S Slimline Intercom

  • 2Megapixel Camera,
  • Integrated Card Reader,
  • Real time 2 way audio,
  • Live camera viewing
  • Cloud or local based storage
  • Rated for outdoor use
  • Mobile App compatible
  • Can integrated with any SIP device

Akuvox E12S can be powered via PoE, If Rain Cover, Door Strike, etc. is required, please scroll down to Accessories tab to order.



Akuvox E12S Slimline Intercom is s trendy unit which is suitable for small / narrow spaces. Akuvox E12S also supports key-less entry via integrated card reader.Despite a slim body, it boasts many cutting-edge features, such as mobile access and wireless communication.

Akuvox E12S Slimline Intercom supports integration with Akuvox range of intercom monitors and Smartplus cloud intercom service.

Akuvox E12S can be powered via PoE, If Rain Cover, Door Strike, etc. is required, please scroll down to Accessories tab to order.


  • Physical & Power

    Body Material: Plastic
    Camera: 2M pixels, automatic lighting
    Button: 1 call button with backlight
    Wiegand port: Support
    RF card reader: 13.56MHz
    Light sensor: 1
    Relays out: 1
    Inputs: 2
    Micro SD card slot: 1
    Microphone: 1
    Speaker: 1
    Ethernet port: RJ45, 10/100Mbps adaptive
    BLE: Yes
    WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only)
    Vandal alarm: Yes
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Power: 12V / 1A
    Water-proof & Dust-proof: IP65
    Installation: Wall-mounted
    Size: 146x70x23mm
    Working Humidity: 10~90%
    Working Temperature: -40°C ~ +60°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ
    Wideband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264
    Video resolution: up to 1920×1080
    Max. image transfer rate: 1080p – 25fps
    Viewing angle: 123°(H) / 69°(V)
    White LEDs for picture lighting during dark hours with internal light sensor
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Web management portal
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Apartment/flat intercom with door access control
    Remote site entry over Internet

Akuvox E12S Slimline Intercom Datasheet
