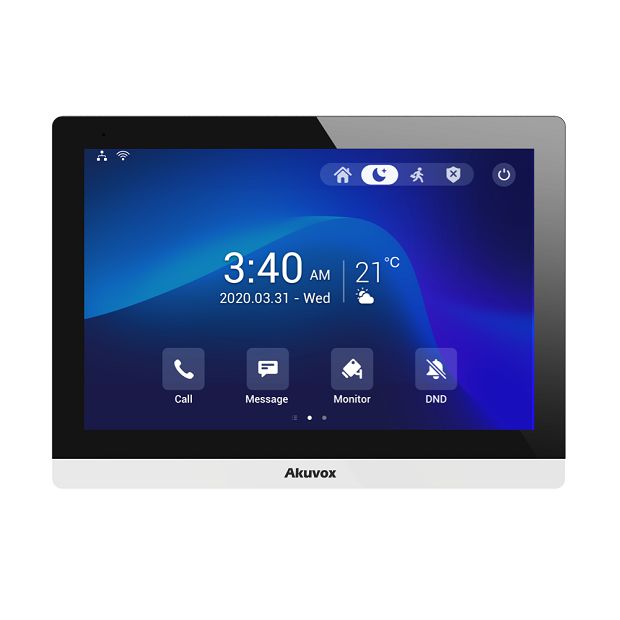

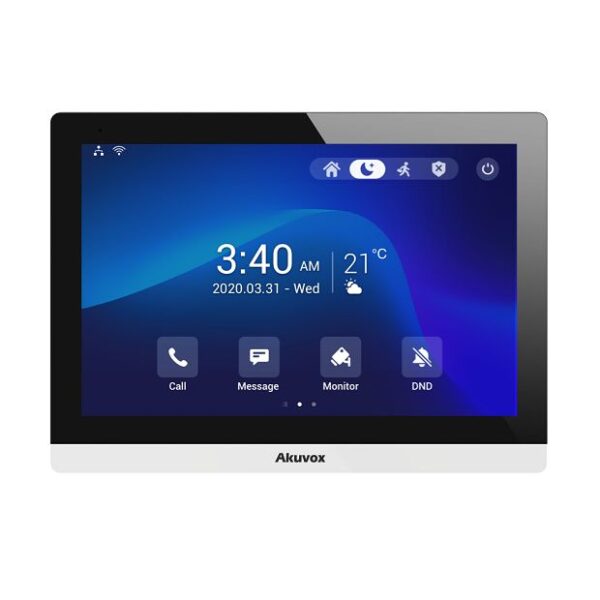

Akuvox C319A – Android 10 inch Premium Touchscreen with Camera, Wi-Fi, Bluetooth.

  • Android 9.0 OS
  • Ultra clear, stylish thin profile design
  • 10” capacitive touch screen with energy saving mode
  • 1MP CMOS camera
  • Wi-Fi (2.4GHz, IEEE802.11 b/g/n)
  • Supports Bluetooth BLE 4.2
  • Reception of a HD picture from the door communicator
  • Two-way communication with other units in the network, based on SIP v2.0 protocol
  • Supports Video Preview – allows you to see your visitor before answering call
  • Android operating system allows easy integration with 3rd party apps
  • Powered by PoE or external source for easy and convenient installation
  • Supports US or European electrical wall box mounting
  • Built in Smart voice assistant
Compare
Brand:

Description

Akuvox C319A – Android 10 inch premium touch screen with Camera, Wi-Fi, Bluetooth supports 3rd party apps and provides audio and video communication with Door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 10 inch capacitive touch screen display.

Akuvox C319A – Android 10 inch premium touch screen with Camera, Wi-Fi, Bluetooth can operate as standalone or integrate with IP Phone systems for extra user convenience, it also comes with PoE or Wi-Fi for easy and cost effective installation. Ability to add 3rd party android apps for Home Automation etc. makes the Akuvox C319A a powerful multi-function communicator for Smart Homes.

Akuvox C319A also supports integration with Akuvox Smartplus Mobile Video Service to enable receiving video intercom calls remotely.



C319 Specification

  • Physical & Power

    Front panel: Plastic
    RAM / ROM: 2GB / 8GB
    Display: 10 Inch IPS LCD
    Screen: 10 Inch capacitive touch screen
    Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
    BLE: Support BLE 4.2
    Camera: 1MP camera, CMOS
    Memory slot:1 Micro SD slot
    RS485 port: Support
    Relays out: 2
    Bell in: 1
    IO: 8
    Microphone: -26dB
    Speaker: Dual speakers, 4Ω / 3W
    Ethernet ports: 1xRJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Tamper resistant: Support
    Installation: Wall-mounted & Desktop
    Dimension: 251×182.5×29.75mm
    Working Humidity: 10~90%
    Working Temperature: -10°C ~ +45°C
    Storage Temperature: -20°C ~ +70°C
  • Touch Screen Display

    Display Mode: Normally black, Transmissive
    LCD Size: 10inch (Diagonal)
    Aspect Ratio: 16:10
    Resolution: 1280×800
    Contrast ratio: 900:1
    Luminance: 350 cd/m²
    Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
    Touch Screen: Projected capacitive
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
    Automatic Gain Control
  • Video

    Streaming formats: H.263 & H.264
  • Networking

    Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Firmware upgrade
    System logs (include door access logs)
  • Voice Assistant

    Voice pickup distance up to 5 meters
    Voice recognition accuracy up to 95%
    Privacy protection with native voice data
    Support English
  • Application Scenario

    Villas
    Apartment complexes
    Home automation systems
    Modern interiors



Akuvox C319A – Android 10 inch Premium Touchscreen Datasheet
