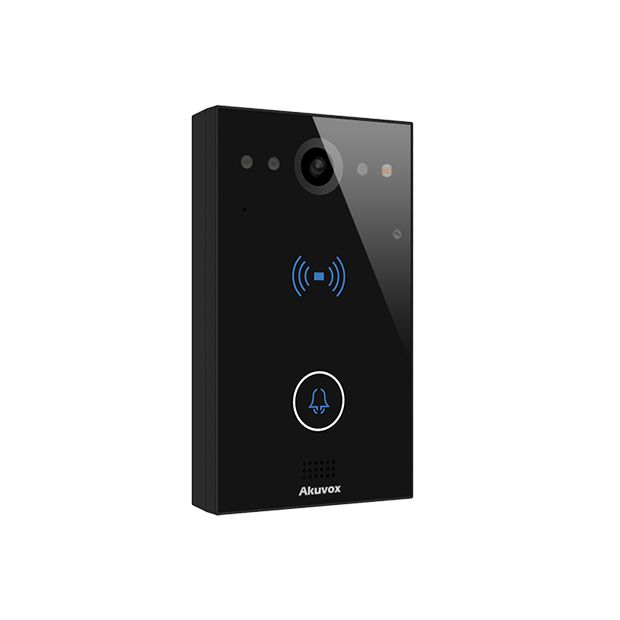

Akuvox E11R Video Intercom with integrated Card Reader

Entry level video intercom for secure locations

  • 2 MP Wide angle Camera
  • 13.56MHz & 125kHz RF Card Reader
  • IR LEDs for night vision
  • Integrated door open relays
  • PoE or 12V DC power
  • Flush or Wall mount option




Akuvox E11R Video Intercom with integrated Card Reader is a compact intercom designed mainly for indoor use.  It features the latest IP connectivity technology and with a high resolution (2M pixels) colour camera and RFID card reader for secure access control.

Akuvox E11R Video Intercom with integrated Card Reader can work as a standalone unit or integrate with IP Phone systems for extra user convenience. The E11R comes with integrated PoE for easy cost effective installation.

Akuvox E11R also supports integration with Akuvox Smartplus Mobile Video Service to enable receiving video intercom calls on mobiles / touch screen monitors.

Akuvox E11R Video Intercom Datasheet



  • At a Glance

    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over- Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Plastic
    Camera.2M pixels, automatic lighting
    Button: 1 call button
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RF card reader: 13. 56MHz & 125kHz
    Relays out: 2
    Inputs: 2
    Microphone: – 40dB
    Speaker: 4Ω / 3W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power- over- Ethernet
    12V DC connector (if not using PoE)
    Installation: Flush-mounted or Wall-mounted
    Flush-mounted DIM: 189x120x56.5mm
    Wall-mounted DIM: 145x85x27.5mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +65°C
    Storage’ Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),
    SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7″, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264
    Video resolution: up to 1280x720p
    Max. image transfer rate: 720p – 30fps
    Viewing angle: 116*(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3″- Party- Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto- Provisioning
    Web management portal
    Web- based packet dump
    Configuration backup/ restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP- PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control



Akuvox E11R Video Intercom Datasheet
